Stage 8 – Stakeholder Validation & Acceptance

Capstone Design

Imron Rosyadi

Stage 8 – Stakeholder Validation & Acceptance

Capstone Design Course – From Needs to Validated Systems using the V‑Model & ISO/IEC/IEEE 29148

Focus of this session: Stage 8 – Stakeholder Validation & Acceptance

DCP‑500C – Stakeholder Validation

This is a Quarto/Reveal.js slide deck in pure Markdown. Use --- between slides. Every sentence ends with two spaces for Reveal line breaks.

This session assumes students have: - Defined stakeholder needs (STR-*) and system requirements (REQ-*). - Done design, implementation, unit/component verification (Stage 6). - Completed or nearly completed system / integration verification (Stage 7, DCP‑500B).

Now you show how we close the loop: - Bring the system back to real stakeholders. - Confirm it actually solves their problem.

Session Learning Objectives

By the end of this session, you will be able to:

1. Place Stage 8 – Stakeholder Validation & Acceptance correctly in the V‑Model and distinguish it from verification.
2. Describe the ISO/IEC/IEEE 29148 Validation process and its main activities.
3. Plan validation scenarios and acceptance tests that tie back to stakeholder needs (STR-*).
4. Identify the key deliverables of Stage 8, especially DCP‑500C – Stakeholder Validation and VAL-* artifacts.
5. Apply these concepts to ECE projects (IoT, motor control, FPGA systems, embedded devices) using realistic examples of validation.

Ask the class up front: - “What is the difference between verification and validation in your own words?” Collect a few answers and keep them in mind to refine when you present the formal definitions.

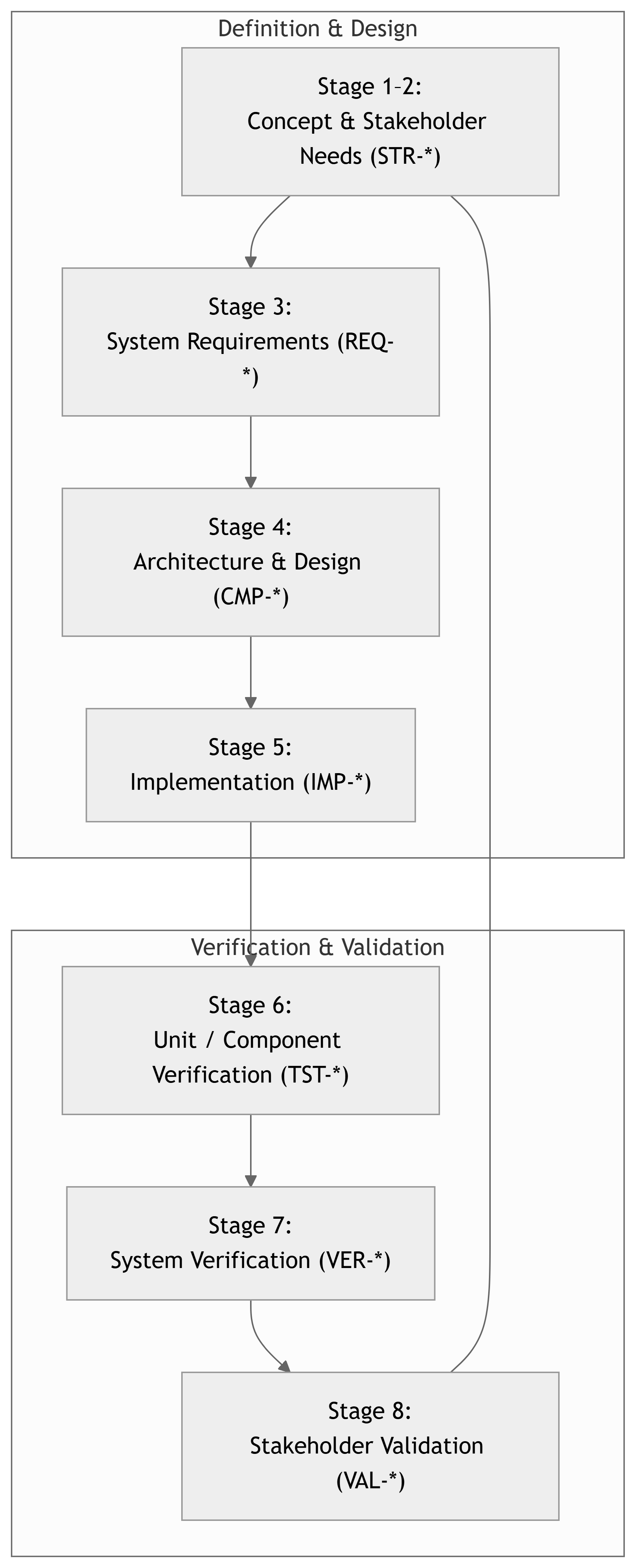

V‑Model – Where Is Stage 8?

Important

Stage 8 is the mirror of Stage 1–2: You are validating the delivered system against the stakeholder needs (STR-*), not just the technical requirements.

Emphasize: - Stage 7 answered: “Does the system meet its requirements?” - Stage 8 answers: “Does the system satisfy real users and stakeholders in their intended context?”

The dashed line A — G shows the direct STR ↔︎ VAL traceability.

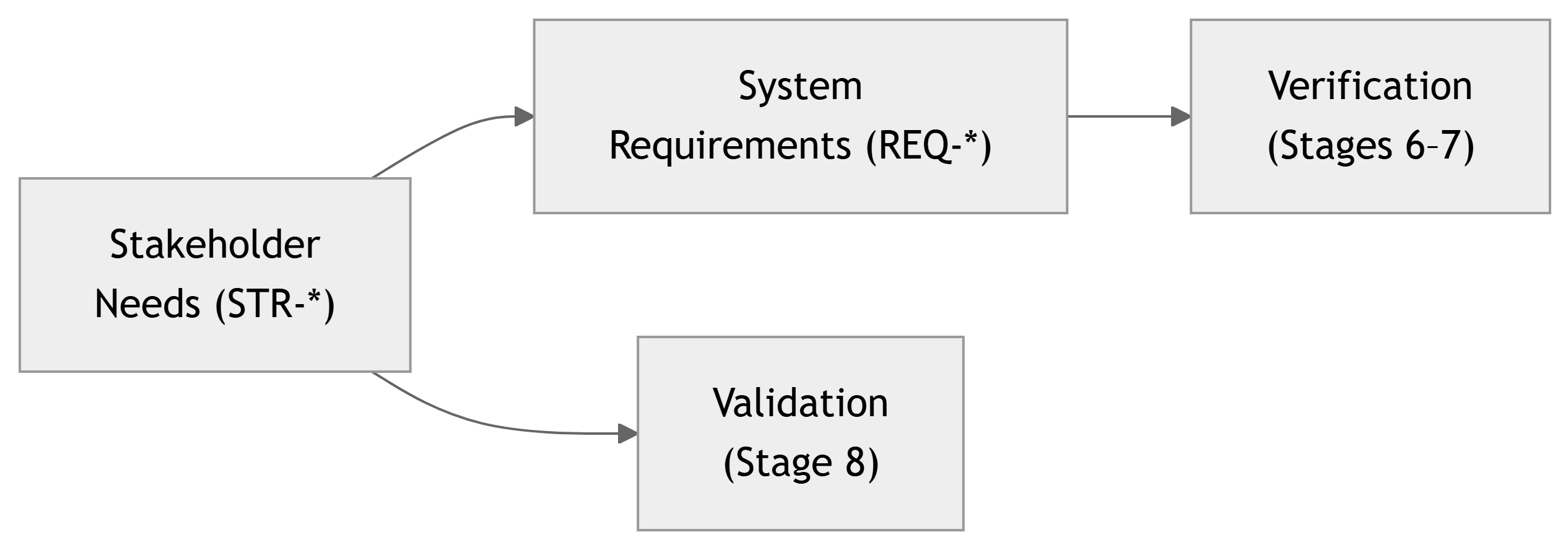

Quick Recap – Verification vs Validation

Verification – “Did we build it right?”

• Check product vs requirements and design.
• Activities: unit tests, system tests, analyses, inspections.
• Stages 6 and 7.

Validation – “Did we build the right thing?”

• Check product vs stakeholder needs (STR-*) and intended use.
• Realistic scenarios, users, environments.
• Stage 8.

Tip

A system can be verified (passes all REQ‑based tests) and still fail validation if the requirements were incomplete, misunderstood, or no longer match user needs.

Give a simple example: - Requirement: “System shall log all data.” Verified. - Stakeholder: “I needed a real‑time alarm, not just logs.” Validation fails.

Stage 8 is where you discover such gaps.

29148: What Is Validation?

ISO/IEC/IEEE 29148 defines Validation as:

Confirmation, through provision of objective evidence, that the system, as built, fulfills its intended use when placed in its intended operational environment.

Key points for Stage 8:

• Focus on stakeholder needs (STR-*) and operational scenarios.
• Uses realistic users, workflows, and environments as far as practical.
• Produces evidence that supports acceptance decisions.

Highlight: - Verification ensures we built what we specified. - Validation checks that what we specified was the right thing in the first place.

They are related but not interchangeable.

29148 Validation Activities (High Level)

Typical validation process steps (adapted from 29148 and course framework):

1. Plan validation
   • Identify stakeholders, context of use, and success criteria.
2. Define validation objectives and scenarios
   • What real‑world tasks should the system enable?
   • Map these to stakeholder requirements (STR-*).
3. Prepare validation environment
   • As close as possible to operational conditions.
4. Conduct validation sessions
   • Demonstrations, user trials, pilot runs, acceptance tests.
5. Collect and analyze evidence
   • Observations, metrics, questionnaires, stakeholder feedback.
6. Decide on acceptance
   • Confirm which needs are satisfied, which are partially or not met.
   • Identify required changes or limitations to communicate.
7. Document results
   • DCP‑500C – Stakeholder Validation, updated RTM, acceptance sign‑off(s) where possible.

Clarify that in a university capstone, validation may be: - Smaller scale than in industry. - Time‑boxed, often a few sessions with stakeholders / advisors / peers.

Still, we want to mimic the real discipline of validation.

Stage 8 in the Course Framework

Course Stage:

• Stage 8 – Stakeholder Validation & Acceptance

Inputs:

• DCP‑100B – Stakeholder Requirements (STR-*).
• DCP‑200 – System Requirements (REQ-*).
• DCP‑500B – System Verification (Stage 7 results).
• Working system prototype (HW + SW + docs).

Outputs:

• Validation plan and scenarios (VAL-* items).
• Validation session records (notes, metrics, videos, surveys).
• DCP‑500C – Stakeholder Validation document.
• Updated RTM with STR-* → VAL-* links.
• Acceptance decision (yes / yes with caveats / no).

Note

Stage 7 said: “We meet REQ‑123.” Stage 8 should let a stakeholder say:

“Yes, this actually solves my problem / supports my work.”

Underline the three‑level chain: - STR – stakeholder needs. - REQ – engineered requirements. - VER / VAL – evidence.

Stage 8 calls stakeholders back into the loop.

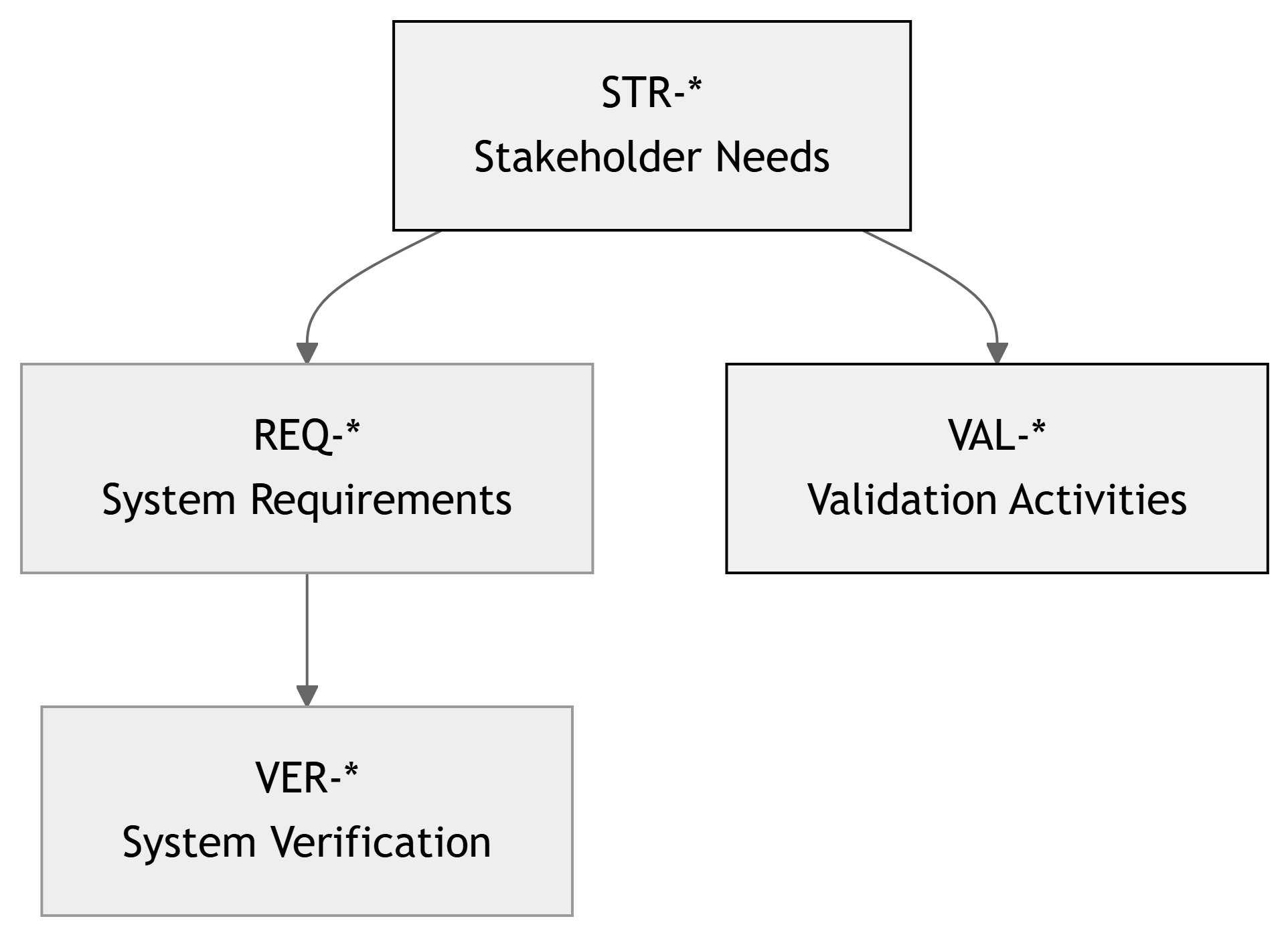

TRACE: From STR‑* to VAL‑*

Interpretation:

• STR-* were captured early (Stage 1–2).
• REQ-* were derived from STR-* (Stage 3).
• VER-* tested REQ-* (Stage 7).
• Now VAL-* activities and acceptance tests link directly back to STR-*.

Important

Validation must explicitly reference stakeholder needs (STR-*), not just REQ-*.

Give an example STR:

• STR-SY-001: “Lab technicians can quickly see if any lab is too hot or too cold.”

Possible VAL-* link: - VAL-STR-001-01: Observational study where lab tech uses dashboard to locate problematic rooms in under 1 minute.

ECE Example – Smart Lab Sensor Network

Stakeholder:

• Lab manager, lab technicians, department safety officer.

Key Stakeholder Needs (STR-*):

• STR-SY-001: Quickly know if any lab is out of safe temperature range.
• STR-SY-002: Understand historical temperature trends for audits.
• STR-SY-003: Avoid having to manually walk around checking every room.

Potential Validation Activities (VAL-*):

• VAL-STR-001-01: Lab manager uses system to locate a “too hot” room in a mock scenario.
• VAL-STR-002-01: Safety officer retrieves last week’s data to check compliance.
• VAL-STR-003-01: Compare time/effort vs old manual process.

Highlight distinction: - Stage 7 already checked: - Latency, accuracy, reliability (technical). - Stage 8 checks whether: - Stakeholders actually find and use the information easily. - The system reduces their workload as intended.

Example Need → Requirement → Validation

Stakeholder Need (STR-SY-001):

“I want to quickly see if any room is unsafe, without reading lots of numbers.”

Derived Requirements (simplified):

• REQ-UI-001: Dashboard shall show each room with a color‑coded status (OK / Warning / Alarm).
• REQ-UI-002: Overall summary view shall be visible without scrolling on a standard 1080p monitor.

Verification (Stage 7) – VER-*:

• Check that status colors are computed correctly from thresholds.
• Check that layout fits 1080p screen.

Validation (Stage 8) – VAL-*:

• VAL-STR-001-01: Invite lab manager, show them the dashboard, and:
  • Ask them to identify any problematic lab within 30 seconds using the interface.
  • Observe whether they rely on color coding or struggle with reading numbers.

Tip

Validation focuses on usability, workflow, value, not just technical correctness.

You can measure: - Time to complete task. - Error rate (did they miss a critical room?). - Subjective rating (“Is this easy to use?”).

These form part of your DCP‑500C evidence.

29148 Validation Activities – Applied

Break down the 29148 steps with concrete tasks for your capstone:

1. Identify stakeholders and context of use
   • Who will actually use or benefit from this system (lab manager, student, operator, client engineer)?
   • Where and how (lab, field, classroom demo, web)?
2. Define validation objectives
   • What tasks or problems must the system help them solve?
   • What would count as success in their view?
3. Design validation scenarios (VAL-*)
   • Task scripts, acceptance tests, demo storyboards tied to STR-*.
4. Prepare the validation environment
   • As close as possible to real conditions (devices, data, noise, loads).

5. Conduct validation sessions
   • Run scenarios with real stakeholders or realistic proxies.
   • Capture observations, times, outcomes, comments.
6. Analyze and decide
   • Identify which needs are fully met, partially met, or not met.
   • Decide on project‑level acceptance and recommendations.
7. Document in DCP‑500C
   • Structured record that closes the loop on stakeholder needs.

Point out that in some industrial projects, validation can last months (field pilots). In capstone, it might be 1–3 structured sessions or a few well‑designed demos. What matters is the discipline, not the scale.

DCP‑500C – Stakeholder Validation (Overview)

Main Stage 8 deliverable:

• DCP‑500C – Stakeholder Validation & Acceptance

Typical contents:

1. Purpose & Scope – Which stakeholders, which needs (STR-*) are in scope.
2. Stakeholders & Roles – Who participated, what roles they have.
3. Validation Plan – Scenarios, success criteria, schedule.
4. Validation Activities (VAL-*) – Detailed descriptions and scripts.
5. Results & Evidence – Observations, measurements, feedback.
6. Assessment vs Needs (STR-*) – Which needs are met / partially / not met.
7. Acceptance Decision & Conditions – Advisor / client sign‑off if possible.
8. Lessons Learned & Future Work – What remains to be improved if the project continued.

Note

DCP‑500C is your final argument that the system is not just technically solid, but valuable to the people it was built for.

You can reuse style from DCP‑500A/B (structured tables, IDs). But now the main ID namespace is VAL-* instead of TST-* or VER-*.

System Tests vs Validation Activities – Contrast

System Verification (Stage 7, VER-*):

• Perspective: Engineer / system.
• Focus:
  • Requirements (REQ-*).
  • Technical performance (latency, accuracy, reliability).
• Methods:
  • Automated tests, instrumentation, load scripts.
• Example:
  • “Does the system show temperature within 30 s of change?”

Stakeholder Validation (Stage 8, VAL-*):

• Perspective: User / stakeholder.
• Focus:
  • Needs (STR-*).
  • Usability, usefulness, workflow fit.
• Methods:
  • User observation, interviews, acceptance demos, pilots.
• Example:
  • “Can a lab manager easily see which rooms need attention?”

Important

Stage 7 can pass while Stage 8 fails. If that happens, you have learned something important about stakeholder needs.

Remind them: - Failure at Stage 8 is not necessarily a “bad grade” if it is well‑analyzed and leads to insights. - It shows that requirements elicitation might need improvement in future iterations.

ECE Example – Motor Drive Platform Validation

Project: BLDC motor drive with GUI for lab use.

Stakeholders: - Lab instructors. - Students running lab experiments.

Stakeholder Needs (examples):

• STR-MD-001: Instructors can set up labs quickly and safely.
• STR-MD-002: Students can change motor speed easily without damaging equipment.
• STR-MD-003: Safety stops are obvious and intuitive.

Validation Activities (VAL-*):

• VAL-MD-001-01: Instructor configures a typical lab setup in under 10 minutes after brief training.
• VAL-MD-002-01: Students perform a speed sweep lab with only the provided manual.
• VAL-MD-003-01: Observers watch if students instinctively use the E‑stop in a mock “problem” scenario.

Connect to earlier Stage 7 tests: - Stage 7 already measured E‑stop response time (200 ms). - Stage 8 checks whether users know when and how to trigger it, and feel safe.

Example Validation Scenario – VAL‑MD‑002‑01

ID: VAL-MD-002-01 – Student Lab Usability Scenario

• Linked Needs (STR-*):
  • STR-MD-002: Students can safely run speed control experiments with minimal confusion.
• Objective:
  • Determine whether typical students can perform a standard motor speed control lab using the system and manual, without instructor intervention.
• Participants:
  • 4–6 students who did not build the system, representing target users.

Procedure (simplified):

1. Provide students with the motor drive hardware and GUI, plus a brief lab handout (no extra verbal coaching).
2. Ask them to:
   • Start the motor.
   • Adjust speed to 500, 1000, 1500 RPM.
   • Record observed behavior and plots.
3. Observe without interfering; time how long they take to complete each step.
4. After the task, administer a short questionnaire:
   • “How easy was it to use the interface?” (1–5)
   • “Did you ever feel unsure or unsafe?” (Y/N, comments).

Success Criteria (example):

• At least 80% of students can complete all steps within the allotted lab time.
• Average usability rating ≥ 4/5.
• No safety incidents or serious confusion reported.

Emphasize that validation criteria often include percentages and thresholds, not just binary pass/fail.

Record not just success, but where they struggled, which will inform improvements.

ECE Example – FPGA‑Based Signal Processing Toolkit

Project: FPGA card used as a teaching / research accelerator for signal processing.

Stakeholders: - Faculty member doing research. - Graduate students prototyping algorithms.

Key Needs (examples):

• STR-FPGA-001: Easy to swap in new FIR filter coefficients or HDL modules.
• STR-FPGA-002: Students can set up experiments quickly from Python/Matlab.
• STR-FPGA-003: System behaves predictably during long‑running experiments.

Validation (VAL-*) Examples:

• VAL-FPGA-001-01: Researcher swaps filter design and deploys new bitstream in ≤ 30 min using provided scripts.
• VAL-FPGA-002-01: Student controls FPGA pipeline from Python notebook following a short tutorial.
• VAL-FPGA-003-01: 2‑hour experiment run with researcher judging reliability and workflow fit.

Again, Stage 7 already verified throughput, latency, SNR. Stage 8 checks whether the workflow around those capabilities supports real research/teaching.

Designing Good Validation Activities

Good VAL-* activities are:

• Anchored in stakeholder needs (STR-*):
  • Each scenario references one or more STR-* IDs.
• Task‑oriented:
  • Based on real tasks stakeholders perform (not just button‑click tours).
• Contextual:
  • Use realistic data, environments, and constraints where possible.
• Observable:
  • You can measure time, errors, satisfaction, or other indicators.
• Open to feedback:
  • Collect qualitative comments, not just numeric scores.

Tip

Ask yourself:

“If this were a product, would this validation give the client enough confidence to buy or deploy it?”

Encourage variety: - Some VAL-* can be structured “acceptance tests”. - Others may be more exploratory (observational, interviews).

Both are valid if they are planned and documented.

Validation Methods – Beyond Traditional Tests

At Stage 8, you may use a mix of methods:

• Demonstration:
  • Show key workflows to stakeholders; let them interact and discuss.
• Observation / Usability Testing:
  • Watch real users perform tasks; note confusion points and errors.
• Interviews & Surveys:
  • Gather perceptions on usefulness, trust, and satisfaction.
• Pilot Runs / Field Trials:
  • Deploy the system in real or pseudo‑real conditions for some time.
• Analytical Comparison:
  • Compare measured performance and outcomes to stakeholder expectations (e.g., time saved, reliability vs previous methods).

Note

In capstone projects, even a short, structured user session can be valuable validation evidence if carefully planned.

Warn against “drive‑by validation”: - A quick “Looks good” from the advisor in the hallway is not the same as a structured validation tied to STR-*.

Validation Environment – Practical Considerations

It is often impossible to fully replicate real‑world conditions, but you should approximate them.

Smart Lab Sensor Network example:

• Ideally: real building, real lab staff, real HVAC events.
• Practically in course:
  • A subset of rooms in the ECE building.
  • Simulated temperature events.
  • Lab manager or instructor role‑playing as stakeholder.

Motor Drive example:

• Ideally: long‑term use in teaching labs across a semester.
• Practically:
  • 1–2 trial lab sessions with volunteer students.
  • Instructor feedback on set‑up time and clarity.

Warning

Be explicit about assumptions and limitations of your validation environment in DCP‑500C.

Stress honesty: - It is better to clearly explain validation constraints than to over‑claim. - Evaluators look for critical thinking, not perfection.

Capturing Evidence – What to Record

During validation, collect:

• Quantitative data:
  • Time to complete tasks.
  • Number of errors or assistance requests.
  • Success/failure rates.
• Qualitative data:
  • Comments from stakeholders.
  • Observations of confusion, workarounds, or pleasant surprises.
  • Suggestions for improvements.
• Artifacts:
  • Photos or screen recordings (if allowed).
  • Filled questionnaires.
  • Log extracts showing realistic use.

Note

These form the core evidence you will summarize in DCP‑500C, not just “The client liked it.”

Mention ethics briefly if relevant: - Respect privacy, get consent if recording or quoting. - In courses, this is usually simple, but awareness is good.

Example – Validation Results Summary Table

VAL ID	STR ID(s)	Stakeholder Role	Outcome	Key Observations
VAL-STR-001-01	STR-SY-001	Lab manager	Fully met	Could identify hot room in 12 s
VAL-STR-002-01	STR-SY-002	Safety officer	Partially met	Historical charts ok, export cumbersome
VAL-STR-003-01	STR-SY-003	Lab manager	Fully met	Walk‑through replaced by quick screen check
VAL-MD-002-01	STR-MD-002	Students	Partially met	Needed minor help finding correct menu

Important

Validation results can be Fully Met, Partially Met, or Not Met. Document why and what that implies for future work.

Encourage them to avoid vague statuses like “OK” or “Fine”. Instead, define criteria ahead of time and then categorize outcomes accordingly.

RTM – Extending to STR-* ↔︎ VAL-*

Your RTM (Requirements Traceability Matrix) can include validation links.

STR ID	REQ IDs (main)	VER IDs (Stage 7)	VAL IDs (Stage 8)	Validation Status
STR-SY-001	REQ-SY-011, REQ-UI-001	VER-SYS-001	VAL-STR-001-01	Fully met
STR-SY-002	REQ-SW-030, REQ-REP-001	VER-SYS-002, 005	VAL-STR-002-01	Partially met
STR-MD-002	REQ-MD-GUI-001	VER-MD-001	VAL-MD-002-01	Partially met

Tip

By the end of Stage 8, each key stakeholder need (STR-*) should be:

• Validated (Fully / Partially / Not Met), and
• Linked to concrete validation evidence (VAL-*).

Explain that not every tiny STR has to be validated in isolation. - Some VAL-* scenarios can cover multiple needs at once.

In‑Class Exercise – Plan a Validation Scenario

Activity (5–10 minutes):

1. With your team, pick one key stakeholder need (STR-*) from your DCP‑100B.
2. Briefly describe:
   • Who is the stakeholder?
   • What real task / problem does this STR describe?
3. Design a validation activity (VAL-*):
   • ID (e.g., VAL-<proj>-001-01).
   • Objective (one sentence).
   • Participants and environment.
   • 3–5 steps in the scenario.
   • Success criteria (quantitative or qualitative).

We will ask a few teams to share:

• How does your VAL-* link back to STR-*?
• How would you measure success?

Note

This exercise can seed your actual DCP‑500C validation plan.

As you walk around, look for: - Scenarios that are too “demo‑only” with no clear success criteria. - Missing link to specific STR-* IDs.

Prompt teams to be realistic given time and stakeholder availability.

Summary – Key Takeaways for Stage 8

1. Stage 8 – Stakeholder Validation & Acceptance is about confirming that the system fulfills its intended use for real people, in real (or close‑to‑real) contexts.
2. It implements the ISO/IEC/IEEE 29148 Validation process, focusing on stakeholder needs (STR-*) rather than just requirements.
3. Validation activities (VAL-*) are task‑based, contextual, and evidence‑driven, involving actual stakeholders or good proxies.
4. The main deliverable, DCP‑500C – Stakeholder Validation, documents:
   • The validation plan, activities, results, and acceptance decision.
5. Even if all verification tests pass, validation can reveal missing, misunderstood, or evolving needs, which is valuable learning in itself.

Important

In the end, a system is successful not just because it passes all tests, but because its stakeholders say, “Yes, this is what we needed.”

Close the loop for the course:

• Idea → Needs → Requirements → Design → Implementation → Verification → Validation → Handover.

Encourage students: - Treat Stage 8 seriously; it is often the most memorable part for real stakeholders. - Use the feedback from validation to write a strong reflection in their final report (DCP‑600).
