Stage 2 – Stakeholder Needs & Requirements

Capstone Design

Imron Rosyadi

Stage 2 – Stakeholder Needs & Requirements

From Needs to Validated Systems using the V‑Model & ISO/IEC/IEEE 29148

Capstone Design – Stage 2 Focus Session

This deck zooms into Stage 2 – Stakeholder Needs & Requirements.

Students should already have: - Finished or nearly finished Stage 1 / DCP‑100A (problem framing & ConOps). - A rough understanding of their mission, stakeholders, and operational scenarios.

Goals of this session: - Explain how to turn Stage 1 understanding into Stakeholder Requirements (StRS). - Map this to ISO/IEC/IEEE 29148 processes: - Stakeholder Needs & Requirements Definition - Early Requirements Validation (planning) - Show how this becomes DCP‑100B – Stakeholder Requirements with STR-* IDs. - Use ECE‑relevant examples (sensors, embedded, networking, medical, etc.).

Remind them: Stage 2 is still stakeholder language, not detailed technical specs. Technical system requirements come in Stage 3.

Learning Objectives – Stage 2 Session

By the end of this session, you will be able to:

1. Explain the purpose of Stage 2 – Stakeholder Needs & Requirements in the V‑Model.
2. Describe the 29148 Stakeholder Needs & Requirements Definition process and its main activities.
3. Describe the role of Early Requirements Validation (planning) in 29148.
4. Write clear, testable Stakeholder Requirements (STR-*) and organize them into a Stakeholder Requirements Specification (StRS).
5. Relate these concepts to ECE capstone examples and to the DCP‑100B deliverable.

Make clear: after this session, students should know exactly what to put into DCP‑100B, and how it differs from both DCP‑100A (problem framing) and DCP‑200 (system requirements).

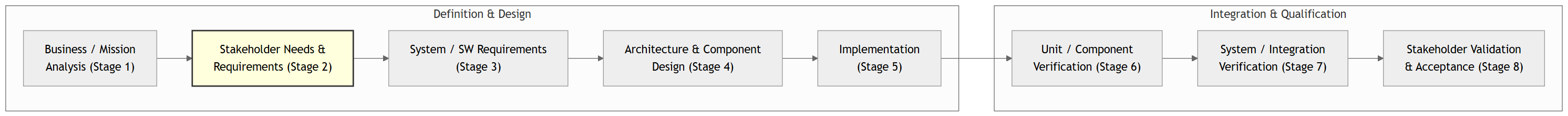

Where Stage 2 Fits in the V‑Model

Note

Stage 2 sits at the upper‑left of the V: - Transform mission & ConOps (Stage 1) - Into structured Stakeholder Requirements (STR-*) - That will later drive validation at Stage 8 (VAL-*).

Highlight the mirror relationship: - Stage 2 ↔︎ Stage 8: Stakeholder needs ↔︎ Stakeholder validation (STR-* ↔︎ VAL-*).

Students should see that what they write now will directly shape their final acceptance criteria and demos.

Stage 2 in the Course Framework

From the course overview:

• V‑Model Level: Upper‑left – Stakeholder / User Requirements

29148 Processes used here:

• Stakeholder Needs & Requirements Definition
• Early Requirements Validation (planning)

Stage 2 Activities (course‑level):

• Identify and refine stakeholder needs from Stage 1.
• Elicit needs via interviews, observations, surveys.
• Express needs as clear Stakeholder Requirements (STR-*).
• Begin planning how you will later validate these needs (Stage 8).
• Compile a Stakeholder Requirements Specification (StRS).

Key Deliverable:

• DCP‑100B – Stakeholder Requirements
  • STR-* IDs and descriptions
  • Mapping to stakeholders / scenarios
  • High‑level acceptance criteria
  • Initial Validation Plan (VAL-* planned)

Tip

Stage 2 is the bridge from the story (ConOps) to formal stakeholder requirements you can validate later.

Remind students where they are: - Stage 1: “What is the problem? Who cares? In what context?” - Stage 2: “What exactly do those people need? In their words, but written clearly and testably.” - Stage 3: “How do engineers interpret those needs as technical system requirements?”

Emphasize that skipping or rushing Stage 2 leads to requirements expressed only in engineer‑speak, which can drift away from real stakeholder needs.

29148: Stakeholder Needs & Requirements Definition – Purpose

Purpose (adapted from 29148): To elicit, analyze, and document the needs, expectations, and constraints of stakeholders for a system, and express them as a set of stakeholder requirements that are:

• Complete enough for agreed scope.
• Consistent and non‑conflicting.
• Unambiguous and understandable to stakeholders.
• Feasible within constraints (time, budget, technology).
• Traceable to business/mission needs (Stage 1).

Important

Stakeholder requirements = “What the people and organizations need from the system,” not yet the technical design of the system.

Distinguish between: - Informal needs: “the system should be easy to use.” - Stakeholder Requirements: more precise, structured, still in stakeholder language, but moving toward measurable criteria.

Emphasize: these are still requirements about behavior and outcomes, not about internal architecture or implementation.

29148: Stakeholder Needs & Requirements – Typical Activities

According to 29148, tailored for the course, the process includes:

1. Elicitation
   • Gather information from stakeholders (interviews, surveys, workshops, observations, reviewing documentation).
2. Analysis and Clarification
   • Organize and clarify needs.
   • Resolve contradictions or conflicts between stakeholders.
3. Transformation into Stakeholder Requirements
   • Turn qualitative needs and scenarios into structured STR-* statements.
   • Group them by function, performance, usability, safety, etc.
4. Review and Agreement
   • Review StRS draft with stakeholders to ensure it matches their intent.
   • Adjust or negotiate scope as needed.
5. Preparation for Validation
   • Define high‑level acceptance criteria and think about how you will validate each STR-* later (Stage 8).

You don’t need to quote 29148 verbatim; focus on doing these activities: - Talk to people. - Write down what they need. - Make it clear and structured. - Check back with them. - Decide how you’ll show success at the end.

Use examples of elicitation questions: - “What are the most common problems you face today?” - “What would a good day look like with the new system?”

Early Requirements Validation (Planning) – Concept

In 29148, validation is about confirming that the system meets stakeholder needs in its intended context.

In Stage 2 we can’t validate yet (no system exists), but we can:

• Plan how we will later validate each stakeholder requirement.
• Check that each requirement is measurable or observable enough to be validated.
• Identify what validation activities (VAL-*) might be necessary:
  • User acceptance tests
  • Usability studies
  • Field trials
  • Demonstrations in realistic environments

Note

Early Validation Planning = “Thinking now about how we’ll prove to stakeholders, at Stage 8, that we built the right thing.”

Stress: This is not full test planning (that comes later for verification), but rather high‑level acceptance thinking:

For each major STR-*, ask: - “What would convince the lab tech / nurse / driver that we met this?”

This mindset prevents vague requirements like “system shall be user‑friendly,” which are hard to validate.

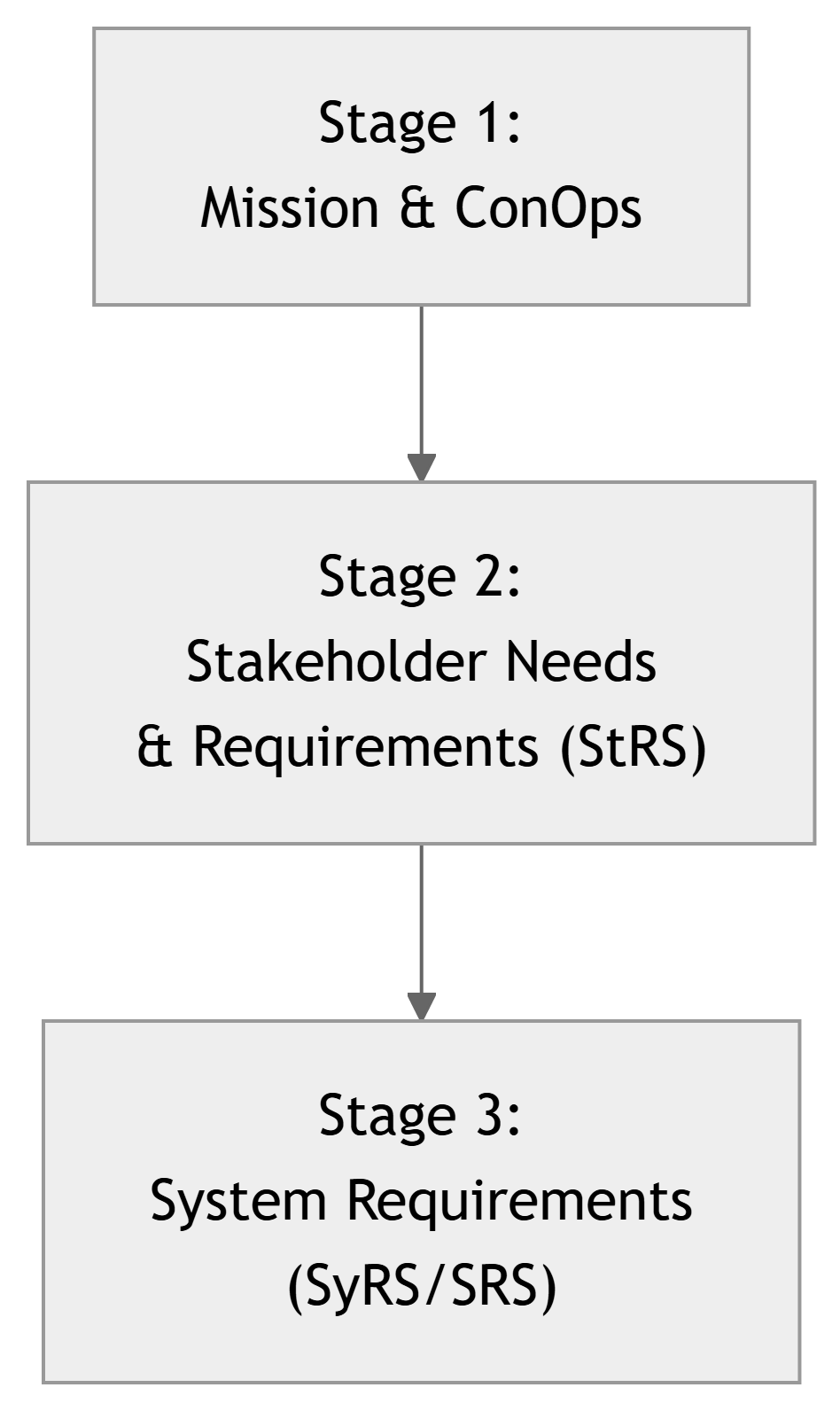

Stage 1 → Stage 2 → Stage 3 – Flow

• Stage 1: high‑level mission, stakeholders, scenarios.
• Stage 2: convert that understanding into structured stakeholder requirements (STR-*).
• Stage 3: technical system requirements (REQ-*) that engineers can design and verify against.

Tip

If you skip Stage 2, you risk going straight from mission → technical specs, and losing the voice of real users along the way.

Use the Smart Lab Sensor Network example to illustrate:

• Stage 1 ConOps: “Lab tech reviews dashboard, sees overheating lab, acts.”
• Stage 2: “Lab tech shall be able to view current temperature for each lab from a single dashboard.” (STR-SY-001)
• Stage 3: “System shall support concurrent display of N lab temperature readings, updated at least once per minute.” (REQ-SY-010)

Show how each level gets more detailed and technical.

What Is a Stakeholder Requirement (STR-*)?

A Stakeholder Requirement is a statement of need or constraint expressed in terms meaningful to stakeholders, but written with enough precision to support later design and validation.

Typical characteristics (adapted from 29148):

• Necessary – required by at least one stakeholder.
• Understandable – written in stakeholder language, not jargon.
• Unambiguous – can’t be read in two conflicting ways.
• Feasible – realistic within project constraints.
• Verifiable/Validatable – you can plan an activity to check it.
• Traceable – linked back to a stakeholder and mission objective.

IDs typically use the pattern:

• STR-SY-### for system‑level stakeholder requirements.
• STR-SW-### if you separate software‑specific stakeholder needs.

Important

At this stage, do not worry about internal architecture. Stakeholder requirements talk about what stakeholders want from the system, not how the system is built.

Contrast with REQ-* (system requirements, Stage 3): - STR-*: “Lab tech shall be able to see current status of all labs on one screen.” - REQ-*: “System shall display a list of all configured labs with temperature and humidity values updated at least once per 60 seconds.”

Tell students: if a stakeholder wouldn’t recognize the wording as “about their needs,” it’s probably not a stakeholder requirement.

From Needs to STR-* – Smart Lab Example

Raw stakeholder statements (from interviews):

• “I don’t have time to walk around all labs every hour.”
• “If something overheats, I want to know quickly, not the next day.”
• “I’m not interested in raw data unless I can see what’s wrong at a glance.”
• “The system shouldn’t require me to install special software.”

Candidate Stakeholder Requirements (STR-*):

• STR-SY-001: Lab technicians shall be able to view the current temperature and humidity for each monitored lab from a single centralized dashboard.
• STR-SY-002: The system shall notify lab technicians when any lab remains above a configurable temperature threshold for more than a configurable time period.
• STR-SY-003: The dashboard shall present clear visual indicators of abnormal conditions so that lab technicians can identify problematic labs at a glance.
• STR-SY-004: Authorized users shall be able to access the dashboard using standard web browsers on campus‑managed PCs without installing additional client software.

Explain the transformation: - Take vague statements, ask clarifying questions, and re‑express them as STR-* that are: - Understandable to the stakeholder. - Specific enough to plan tests/validation later.

This is the core work of Stage 2.

ECE Example – Remote Lab Access System

Context: A remote lab access system lets students control lab instruments (oscilloscope, power supply) from home.

Stakeholder groups: - Students (primary users) - Instructors / lab coordinators - IT / security - Lab technicians

Sample stakeholder needs (informal):

• “Students should be able to do labs even if they can’t come to campus.”
• “I need to ensure students work within safe voltage/current limits.”
• “System must not open security holes into lab PCs.”

Candidate STR-* examples:

• STR-SY-101: Students shall be able to remotely access assigned lab instruments during scheduled time slots using their university credentials.
• STR-SY-102: Instructors shall be able to configure safe operating limits (e.g., maximum voltage and current) for each instrument used in a course.
• STR-SY-103: The system shall restrict remote access to only authorized users and lab PCs according to university IT security policies.
• STR-SY-104: Lab technicians shall be able to disable remote access to any instrument for maintenance or in case of malfunction.

This example highlights that stakeholder requirements include: - Usability for students. - Safety and control for instructors. - Security for IT. - Operational control for lab techs.

All are legitimate stakeholder needs that must be captured and later validated.

Elicitation Techniques (29148 in Practice)

How do you actually get these needs?

Common techniques:

• Interviews / Conversations
  • Semi‑structured: prepare guiding questions but allow follow‑up.
• Observation / Contextual Inquiry
  • Watch stakeholders doing their current work; note frustrations, workarounds.
• Surveys / Questionnaires
  • Useful for larger stakeholder groups (e.g., many students).
• Workshops / Brainstorming Sessions
  • Group discussion with multiple stakeholders; align expectations.
• Document Review
  • Existing procedures, manuals, policies, previous project reports.

Tip

In a capstone: At minimum, you should talk directly to your key stakeholders (or a proxy) and capture notes to justify each STR-*.

Encourage them not to rely only on emails or assumptions. Suggest preparing a short interview guide:

• “What is the current process?”
• “What are your biggest pain points?”
• “What would a successful system look like to you?”
• “What are your concerns about a new system?”

Remind them to record these (with permission) or take careful notes, and then distill into StRS.

Organizing Stakeholder Requirements

To keep DCP‑100B readable, group STR-* by category:

• Functional Needs
  • What the system must allow stakeholders to do.
• Performance Needs
  • Responsiveness, capacity, timeliness, uptime expectations.
• Usability & Human Factors
  • Ease of use, accessibility, training requirements.
• Safety, Security, Privacy
  • Protection of people, equipment, and data.
• Operational & Support Needs
  • Installation, configuration, maintenance, monitoring.
• Regulatory & Policy Constraints
  • Compliance with standards, campus policies, legal constraints.

Note

DCP‑100B should not be a random list. Structure it so reviewers and stakeholders can find what matters to them.

Note that some categories will be more or less relevant depending on the project: - A medical device: heavy on safety, regulatory. - A teaching tool app: heavy on usability and performance.

But every project should have at least functional + usability + some operational concerns.

Writing Good STR-* – Clarity and Testability

Problematic requirement (vague):

STR-SY-020: “The system should be easy to use.”

Issues: ambiguous, not directly testable.

Improved requirement (stakeholder + acceptance oriented):

STR-SY-020: First‑time student users shall be able to complete a basic remote lab experiment within 15 minutes of starting, without external help, after only reading a one‑page quick‑start guide.

Now we can imagine a validation activity: a usability test with students.

Simple pattern for STR-*

You can often follow this pattern:

STR-XXX: <Stakeholder group> shall be able to <do something> under <conditions> with <acceptable performance/quality>.

Example:

STR-SY-030: Lab technicians shall be able to acknowledge and silence an environmental alert for any lab within 2 minutes of receiving it, using only the web dashboard from standard lab PCs.

Tip

If you can’t imagine how you would check whether a requirement is met with real users, it probably needs refinement.

Do a quick in‑class exercise (if time):

• Put a vague requirement on the slide and ask students how to make it measurable and stakeholder‑focused.

Example vague: “System should respond quickly.” Improved: “The web interface shall load the main dashboard in less than 3 seconds for on‑campus users in 95% of attempts.”

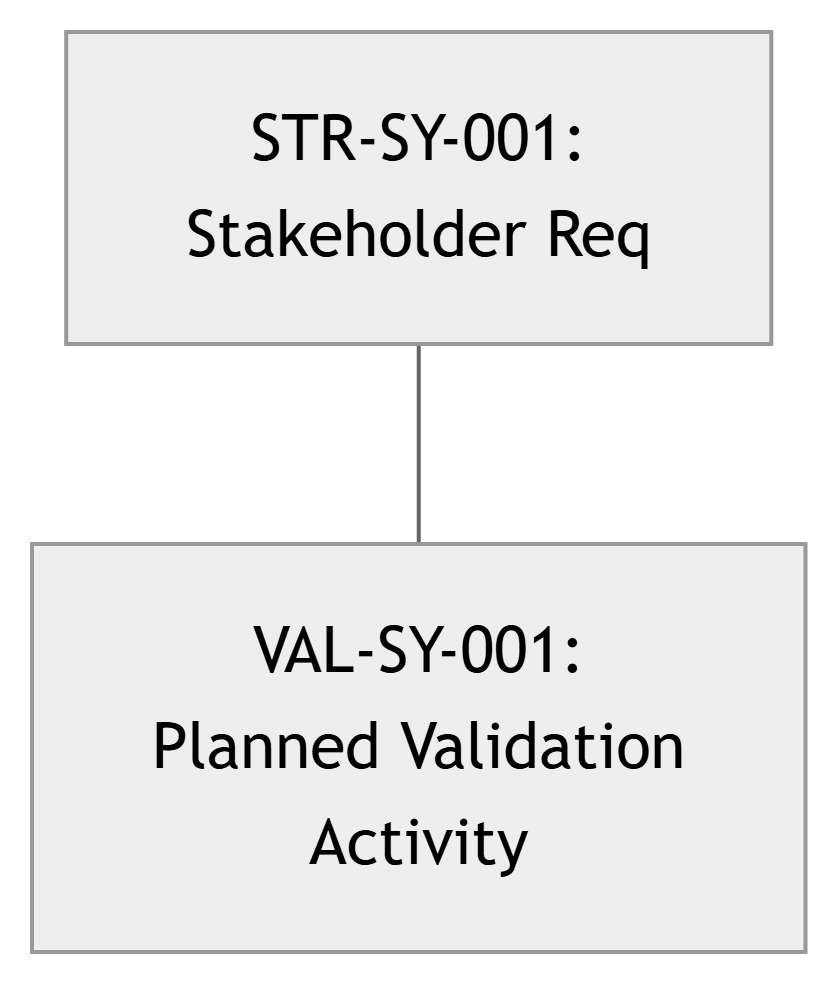

Early Validation Planning – Linking STR-* to VAL-*

For each major STR-*, ask:

• How will we demonstrate to stakeholders that this is satisfied?
• What kind of validation activity (VAL-*) will we design in Stage 8?

Example (Smart Lab Network):

• STR-SY-001: Lab technicians shall be able to view current temperature/humidity for each lab from a single dashboard.
  • VAL-SY-001 (planned): Conduct a demo where lab technicians use the dashboard to correctly identify current conditions in 3 labs without prior training; collect feedback.
• STR-SY-002: System shall notify lab technicians about sustained overheating.
  • VAL-SY-002 (planned): Simulated overheating scenario during validation demo; confirm technicians receive and understand alerts in time to act.

Note

In DCP‑100B, you don’t need full test procedures yet, but you do need to show you have a plan for validation.

Connect back to the idea from the intro lecture: - STR-* ↔︎ VAL-* is the top of the V‑Model mirror.

Emphasize: planning validation early helps prevent impossible or vague stakeholder requirements.

DCP‑100B – Stakeholder Requirements (StRS)

Key contents of DCP‑100B in this course:

1. Introduction and Scope
   • Short description of what this StRS covers (from DCP‑100A context).
2. Stakeholder Summary
   • Brief recap or reference to DCP‑100A stakeholder map.
3. Stakeholder Requirements (STR-*) by Category
   • Functional, performance, usability, safety, etc.
4. Traceability to Stage 1
   • Each STR-* linked to:
     • A stakeholder group (from DCP‑100A).
     • A mission or ConOps scenario.
5. Initial Validation Plan
   • High‑level mapping from key STR-* to proposed VAL-* activities.
6. Open Issues and Assumptions
   • Known unknowns that may affect stakeholder needs.

Warning

Remember: Gate Review rule – You cannot move to Stage 3 until DCP‑100B is approved, with: - Clear STR-* - Traceability to Stage 1 - Initial validation thinking in place

Encourage them to use a table format for STR-* and a separate or linked table for STR-* ↔︎ VAL-*.

Mention that DCP‑100B is not static: minor changes will happen, but major shifts require documented rationale and may affect downstream requirements.

Example – Extract from DCP‑100B (Smart Lab Network)

Table of Stakeholder Requirements (excerpt):

ID	Stakeholder	Category	Description
STR-SY-001	Lab Technicians	Functional	View current temperature/humidity for each monitored lab from one dashboard.
STR-SY-002	Lab Technicians	Functional	Receive alerts when a lab exceeds temperature threshold for a set duration.
STR-SY-003	Lab Technicians	Usability	Identify out‑of‑range labs at a glance via color‑coded indicators.
STR-SY-004	IT / Net Services	Security	Access the dashboard via secure, authenticated connections only.
STR-SY-005	Lab Manager	Performance	System available during lab hours with less than 5% downtime per semester.

Initial Validation Plan (excerpt):

STR ID	Planned VAL-* ID	Validation Approach
STR-SY-001	VAL-SY-001	Lab tech demo session: verify they can see all labs.
STR-SY-002	VAL-SY-002	Simulated overheating scenario with real stakeholders.
STR-SY-003	VAL-SY-003	Usability test: can techs spot issues in < 10 seconds?
STR-SY-004	VAL-SY-004	Security review with IT; simple penetration tests.
STR-SY-005	VAL-SY-005	Monitor uptime logs over pilot period; review with owner.

Use this to concretize DCP‑100B for students: - Show how the STR-* table is organized. - Show that each STR-* will eventually have at least one planned VAL-*.

Note: many details will change later, but the thinking pattern remains.

ECE Example – Wearable Medical Monitor (Stakeholder Requirements)

Context: Wearable device that monitors heart rate and activity for post‑surgery patients.

Stakeholders: - Patients - Nurses - Cardiologists - Hospital IT - Regulatory / ethics board

Sample STR-*:

• STR-SY-201: Patients shall be able to wear the device comfortably for at least 16 hours per day during the monitoring period.
• STR-SY-202: Nurses shall receive an alert within 5 minutes when heart rate exceeds a configured threshold for more than 2 minutes.

More STR-*:

• STR-SY-203: Cardiologists shall be able to review summarized daily reports of heart rate and activity trends for each patient.
• STR-SY-204: The system shall store and transmit patient data in compliance with hospital privacy policies (e.g., encryption in transit and at rest as required).
• STR-SY-205: Hospital IT staff shall be able to manage user accounts and access using the existing hospital authentication system.

Planned validation ideas:

• Patient usability trial (comfort, wearing time).
• Clinical staff demo using anonymized data.
• Security / compliance review with IT and ethics board.

Use this to show: - Stakeholder requirements can include comfort, privacy, integration with existing systems – not just “measure heart rate accurately.” - Many STR-* will later lead to quite complex technical REQ-* and tests, but the stakeholder framing stays simple and clear.

Common Pitfalls in Stage 2

• Vague requirements
  • “System should be fast,” “should be user‑friendly,” “should be secure” with no further detail.
• Hidden assumptions
  • Assuming lab techs have dual monitors or special permissions.
  • Assuming students always have latest smartphones.
• Missing stakeholders
  • Ignoring IT, maintenance staff, or safety officers.
• Jumping to design
  • Writing STR-* that dictate internal technologies:
    • “System shall use Bluetooth X,” “shall use Raspberry Pi 4,” etc.

Warning

Stage 2 is about what stakeholders need, not about picking your favorite chips or frameworks.

Encourage students to use Stage 2 reviews to catch and fix these pitfalls before they become baked into the project.

You can show one or two “bad” example requirements and ask them how to improve.

Summary – Stage 2 Key Takeaways

1. Stage 2 – Stakeholder Needs & Requirements uses 29148’s:
   • Stakeholder Needs & Requirements Definition
   • Early Requirements Validation (planning)
2. Your main job is to:
   • Elicit and document stakeholder needs as clear STR-* requirements.
   • Organize them into a Stakeholder Requirements Specification (StRS) (DCP‑100B).
   • Plan how you will later validate these needs (VAL-* planning).
3. Good STR-* are:
   • Understandable to stakeholders, non‑ambiguous, realistic, and validation‑oriented.
4. DCP‑100B is the Stage 2 gate artifact:
   • Without solid STR-* and initial validation planning, Stage 3 (System Requirements) will be built on shaky ground.

Important

Stage 2 is where you lock in what success means for your stakeholders. Everything else in the project exists to satisfy and prove those STR-*.

Close by: - Reiterating the connection between STR-* in Stage 2 and VAL-* in Stage 8. - Assigning work: draft at least 10 candidate STR-* derived from your DCP‑100A, and map each to a stakeholder and scenario.

Invite targeted questions: - How many STR-* are typical? - How precise should they be at this point? - How to handle conflicting stakeholder needs?
